12u 24" Wall Mount Cabinet - Plexiglass Front Door

Ideal for bigger systems, this 19 DWR wall mount cabinet comes equipped with a secure plexi door and is able to house 12 units with ease. Along with its pivoting capabilities, the cabinet can hold up to 150lbs.

Features

• Dimensions: Outside: 28'h x 23.4'w x 26'd; Inside: 21'h x 19'w x 24'd
• Reversible locking smoked plexiglass front door standard.
• Locking reversible center section for a more secure wall mountinstallation.
• NEW Tool-Free Quick Mount pivot system enables one person mounting of the center section to the backpan on the jobsite.
• Permanently lubricated bushings, with a proprietary pivot, prevents sag.
• Front rail standard, rear rail set is an option. Both fully adjustable.
• Tuck a power strip into specially made compartment without using valuable U space.
• Abundant tie points for internal cable management.
• Smooth-edged laser knockouts provided for cable entry and fan mounting.
• Solid or vented doors can be substituted for plexi.(Call your account manager at 800-962-2576)
• Color: Black powder coat
• PCI Compliant Enclosure
• *On DWR xx-26 wall mount cabinet models ONLY, if using a rear rail for 4 point mounting, the usable depth is 20.5. If mounting only to the front rails, you have the full 24" to use.

COMPLETE:Equipped with a locking pivoting center section, fully adjustable 11gauge, 10-32 threaded front rackrail, and a large laser knockout in the rear, the wall mount cabinet comes with a locking smoked plexiglass front door.

AIR FLOW: Two laser knockouts on top and bottom allow for optional 4.5" fan units for increased ventilation.

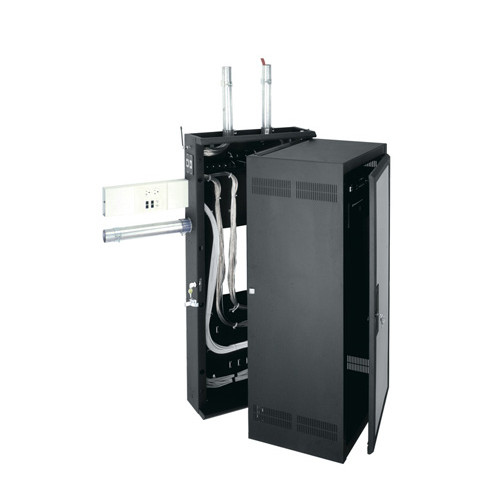

SOLID: Pivoting design (non-hinged) provides weight capacity up to 150lbs without sagging of the center section when the unit is in the open position, even while fully loaded.
EASY ACCESS: Offering unparalleled access to component rear panels, the DWR 12-26PD wall mount cabinet features an advanced cable management system in the center and rear sections. Additionally, the rear section can be easily separated from the center section for pre-mounting on the jobsite.
SECURE: A plexi front door is standard on this wall mount cabinet model. Solid or vented doors can be ordered as an option. The vented door, with solid welded construction, brings added security and still allows good visibility for the monitoring of equipment operating lights.
