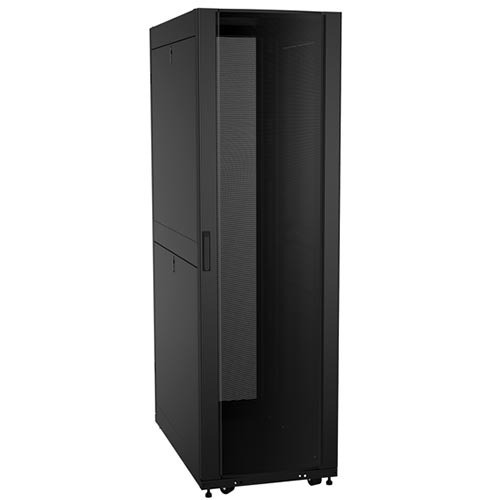

42U 42D Server Cabinet

The RBDC-4242 is a 42u server rack cabinet including all the standard features for your networking or IT needs. Constructed of 16-gauge steel, this sturdy cabinet supports up to 2,300 pounds of rackmount equipment. With perforated front and split rear doors, your equipment with breath fresh air at all times. At 37 inches of adjustable usable depth you can mount most all equipment without issue. Perfect for network closets, data centers, and tech facilities, the RBDC Series or server racks rolls smoothly through doors, ready to be populated.

Part of the Rack Basics® line of economy rack solutions.

Contact Us to request specifications.

Features

• Available in 24U and 42U mounting heights.
• Available in 42.74" overall depth.
• Surface-mounted doors allow for full mounting depth utilization and include a locking swing handle.
• Included PDU cable trays for cable management and industry-standard vertical PDU installation.
• The top panel is easily removable for cable installation.
  • Includes generous cable access with brushed cable entry.
  • Includes fan venting compatible with FK fan kits.
  • Includes three (3) 2U Rack panel cover panels.
• Ships with doors and rails fully assembled and ready for installation on-site. Side panels come packaged inside the cabinet for on-site installation.
• Built-in joining kit speeds up the baying of multiple RB-DC cabinets within a row.

Specifications

• Constructed in 16-gauge mild steel.
• Square hole mounting rails are constructed in 13-gauge mild steel, include rack unit indicators, and are powder coat finished.
  • Rails easily adjust in-depth in 1/4" increments.
• Tested to 2,300 lbs (1,043 kg) of equipment load. Rated for up to 660 lbs (299 kg) rolling caster load rating.
• Grounding studs bonded to frame, side panels and doors.
• Finished in textured black powder paint.
• Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
• RoHS Compliant.

Included Components

• Steel frame with factory-installed levelling feet recessed casters and grounding studs.
• Two (2) pairs of adjustable depth EIA compliant square hole punched mounting rails.
  • Starter pack of (50) M6 screws, cage nuts and washers included.
• One (1) perforated front door (63% open area vented) with locking swing handle.
• One (1) perforated split/barn rear door (63% open area vented) with locking swing handle.
• Two (2) pairs of solid, split, locking and removable side panels.
• One (1) removable vented top panel with (6) hinged cable entry points.
• Two (2) PDU cable trays are mounted in the rear.
